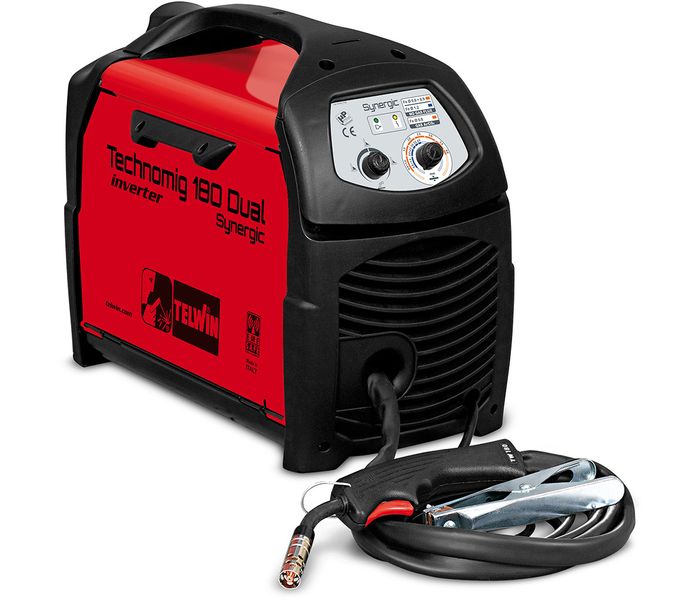

TELWIN TECHNOMIG 180 Dual Synergic Flux-Mig-Mag-Brazing Welding Device

• Cooled compact Mig-Mag welding device.
• Provide for continuous welding.
• For different types of materials such as steel, stainless steel and aluminum.
• Supplied with roll wire and gas regulator for refillable bottle.
• Spot weld function with adjustable timer
• Comes without wire
• Microprocessor controlled
• Large range
• Many welding possibilities

Technical data:

• Voltage 230 V
• Frequency 50/60 Hz
• Phase 1 ~
• Current range 30: 170 A
• Max. empty voltage 62 V
• Duty cycle at 40 ° C 140 A 80 A 20% + 60%
• Absorbed power 1.6 kW 3.8 kW
• Current consumption 16 A
• Power factor of 0.7 n / cos
• φ insulation class IP23
• ø aluminum wire 0.8-1 mm
• ø filled welding wire 0.8-1.2 mm
• ø stainless steel wire 0.8 mm
• ø steel wire 0.6-0.8 mm
• ø brazing 0.8 mm

Dimensions & Weight:

• Dimensions: 460 x 240 x 360 mm
• Weight 10.8 kg
