SATA 444 Oil & Water Separator + Pressure Regulator & Drainage Module

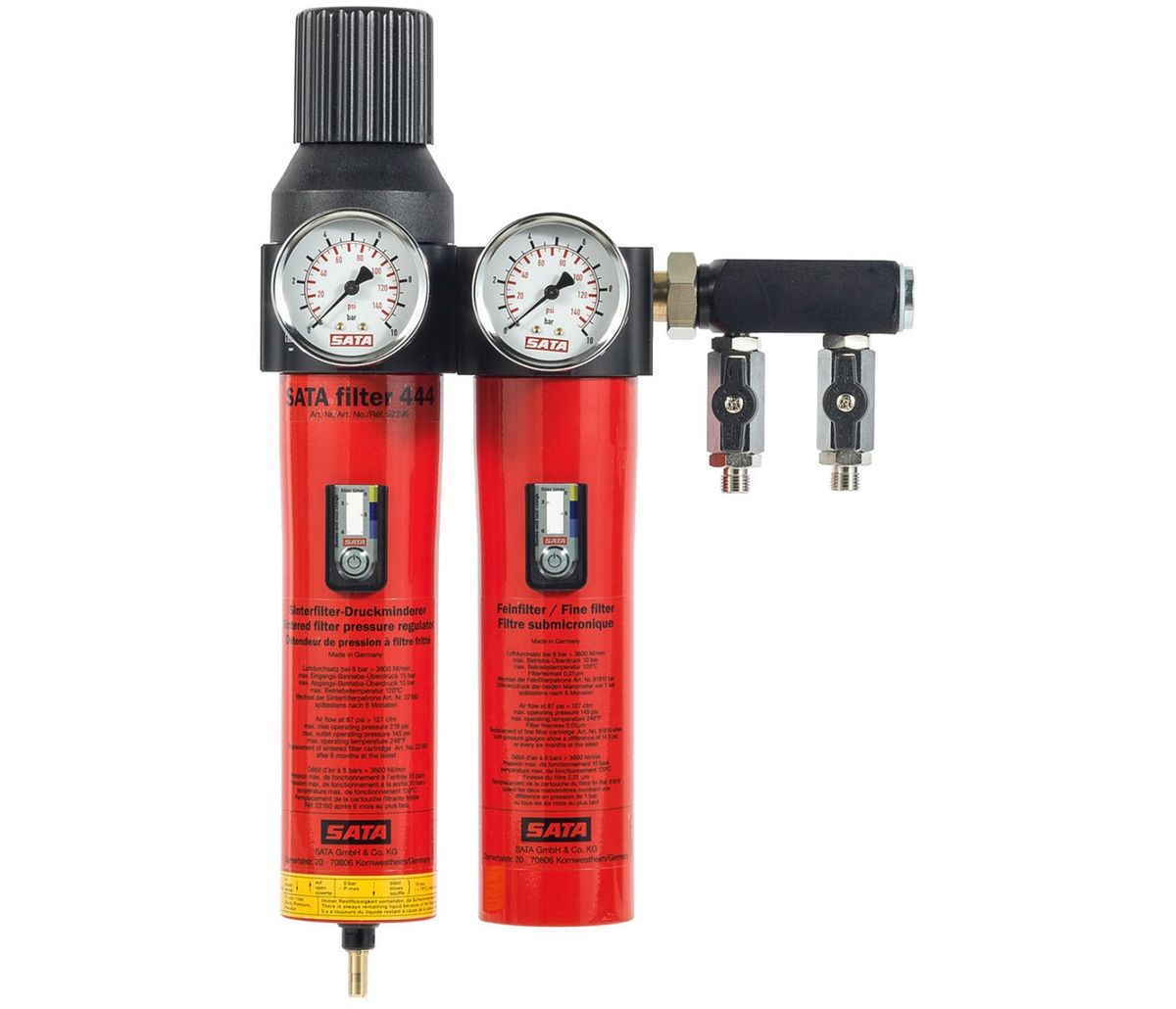

SATA 444 oil and water separator

SATA 444 is an oil and water separator suitable for filtering moisture, oil and water from compressed air. The oil and water separator has a fine filter with a value of 0.01μm with which it is guaranteed to filter 99.998% oil and water from the compressed air. It is equipped with an automatic drain and a manometer with which you can check and control the pressure of the compressed air at any time. Thanks to the robust metal housing, the oil-water separator is temperature resistant up to 120°C, so it can also be used safely in a paint booth. The SATA 444 oil-water separator is suitable for spraying paint or using pneumatic tools.

Avoid moisture and oil in compressed air

Would you like to place a moisture and oil separator on your compressor to ensure a compressed air that is completely clean and dry? The SATA 484 is an excellent oil and water separator with which you can filter 99.998 % oil and water from the compressed air. Thanks to the 0.01μm filtering, you prevent oil or moisture from entering the outgoing compressed air. The oil-water separator is automatically emptied by means of the drainage module.

SATA oil-water separator with 2-stage filtration

The SATA 444 is a 2-stage oil-water separator that removes dirt, oil and moisture from the compressed air. It has a pressure gauge with pressure regulator so that you can accurately set the filter and working pressure. The two-stage oil and water separator ensures that you have completely dry and pure compressed air to operate your air tools or paint sprayer.

Features of the SATA 444 oil and water separator

• Professional removal of oil and water from the compressed air
• Automatic draining function
• With pressure gauge and pressure regulator
• Air filter up to 0.01µm
• Filters oil and water up to 99.998
• Temperature resistant up to 120°C
• Air inlet connection: G 1/2" internal thread
• Air outlet connection: 1/4" external thread
• Max. inlet pressure: 15 bar
• Max. outlet pressure: 10 bar
• Air consumption at 6 bar: 3600 litres/minute
